Lab-use Fluidized-bed Jet Mill For 1-10kg Capacity

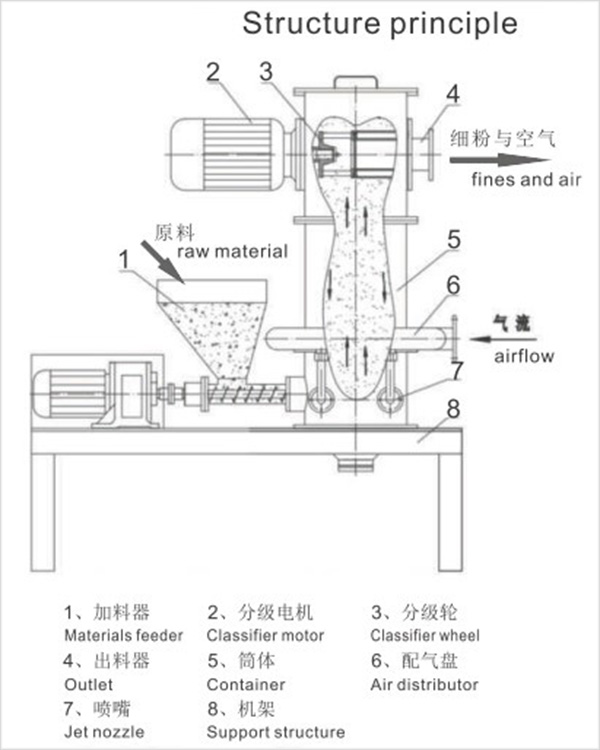

Jet mill main machine structure drawing

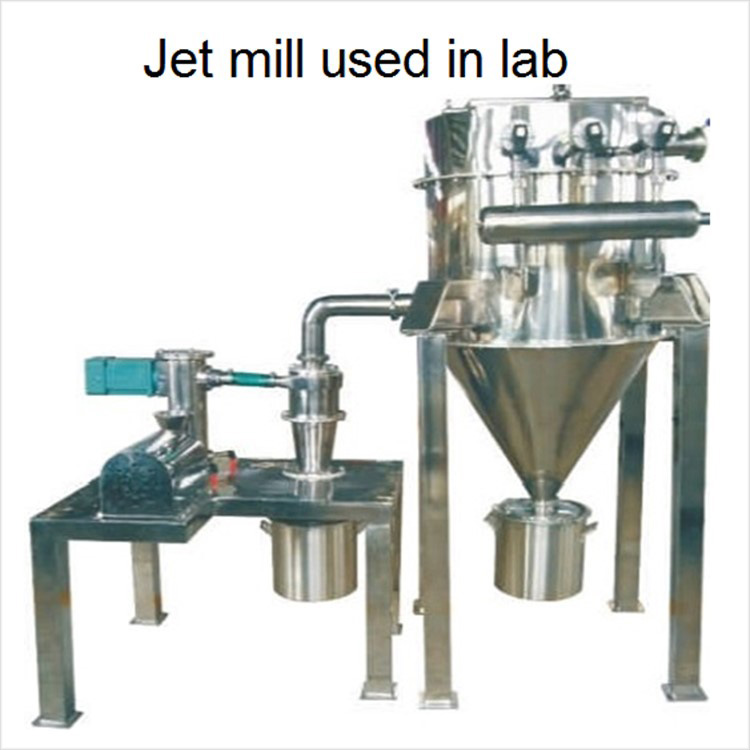

Jet Mill used in Lab, whose principle is based on the principle of the fluidized bed Jet Mill is such a device as using the high-speed airflow to perform the dry-type superfine pulverizing. The grains are accelerated in the high-speed airflow.
The materials will be ground by being accelerated impacted and collided repeatedly in the midst of high-speed airflow. The pulverized materials are separated by the grading wheel and the required particles are separatedthen collected by Cyclone Separator and Collector, The coarser materials are sent back to the milling chamber for further pulverizing until they reach the required size .
1.Mainly for Low capacity demand, 0. 5-10kg/h, fit to be used in Lab.
2.The unit is designed as a compact internal structure to perform closed circuit milling.
3.No temperature rise, low unit noise, no impurity, low waste during milling.
4.Small dimension, compact shape, fit to be used in Lab. The system adopts intelligent touch screen control, easy operation and accurate control.
5.With good air proof, ensure clean environment. Convenient operation and maintenance, automatic equipment operation.
6. Wide grading scope: the crushing fineness of the material can be regulated through adjusting the rotation speed of the grading wheels and the system. Generally, it can reach d =2～15μm
7. Low energy consumption:It can save 30%～40% energy compared with other air pneumatic pulverizers.
8. Low wear: Because the crushing effect is caused by the impact and collision of particles, the high-speed particles seldom hit the wall. It is applicable to crushing the material below Moh’s Scale 9.
APPLICATON SCOPE
It is widely applied to superfine pulverizing for nonmetallic ores, chemical metallurgy, western medicines, traditional Chinese medicine, agricultural chemical and ceramics, fit to be used in Lab.

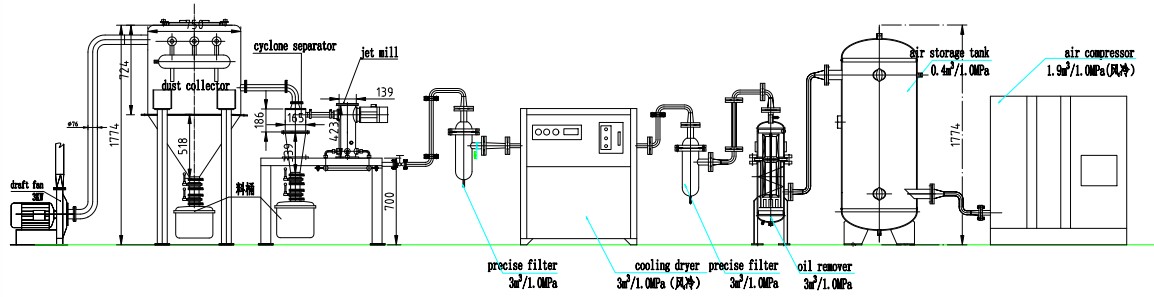

Flow chart of Fluidized-bed Jet Mill
The flow chart is standard milling processing，and can be adjusted for customers.
Machine Details design
1. Structure is simple,with washing hole,easy to clean
2. Motor with cap to avoid powder intaking
3. Compact structure:occupation of land is small
